JFY PUNCH. Punch programming just grew up. For years, punch programming was the job nobody wanted: complex tooling logic, specialist knowledge, hours of setup before a single stroke. JFY PUNCH changes that. As part of the JFY PLUS ecosystem, it connects offline programming, cutting, and bending in one workflow. What used to take a specialist half a day now takes any operator an hour. Punch is back and this time, it’s intuitive.

CAD

Multi-format support with rapid import

Punch

Smart, optimal solutions with immersive edit

Manage

Workflow based management system

Offline Punching Software Designed to Deliver Improve Output Save Money

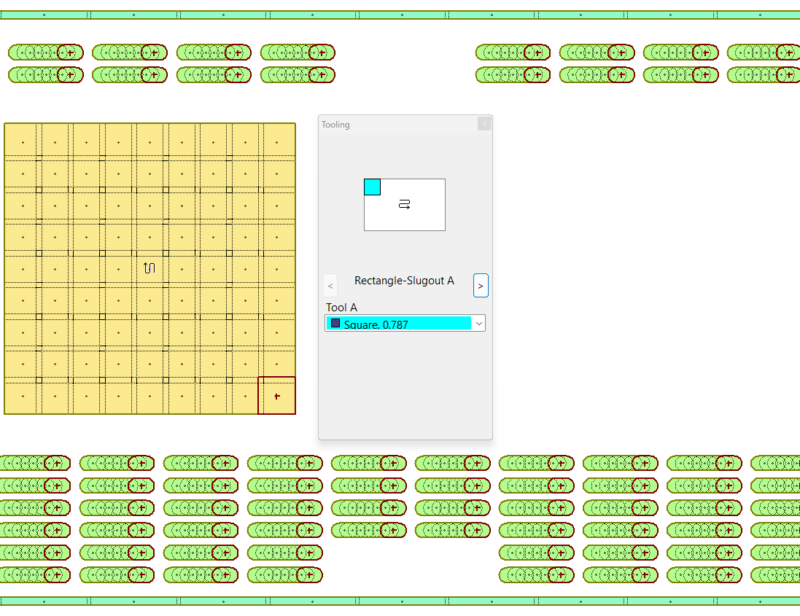

Tool Analysis

Automatic tooling selection from available inventory.

Comprehensive Edit

Automatic, and interactive modes.

Sequence Analysis

Optimal punch sequence with smart features.

Full Nesting

Optimised nesting.

See it in action

Intellegent Offline Punching Software

01 IMPORT CAD

Import standard CAD formats quickly with support for 20+ formats

DXF

IGES

DWG

GEO

+ More

02 PUNCH

Automatic punching with fully immersive edit control

Auto Sequence

Tool Selection

Nesting

HMI Export

03 UNFOLD

Accurate unfolding based on bend solution

Accurate Unfold

Bend Deduction

Ready for 2D Punch

04 HMI

Native file format for Fanuc Control

Program Load

MC Ready

Run Program

Produce

Proven Time Savings

1

Produce more. Set up less.

38 tools load simultaneously, so entire cabinet job families run without interruption. No manual tool swapping mid-run. Less changeover. More parts per shift.

4

±0.1 mm. Shift after shift.

SHW processing frame and closed-loop servo ensures ±0.1 mm hit accuracy under continuous high-frequency punching, with no drift over time. Precision you can quote to your customers.

2

Less scrap. Shorter cycles.

Integrated nesting, costing, and sequencing deliver 8-15% better material utilization versus manual. No trial cuts, no wasted sheet. Shorter cycle times, automatically.

5

Programming on autopilot

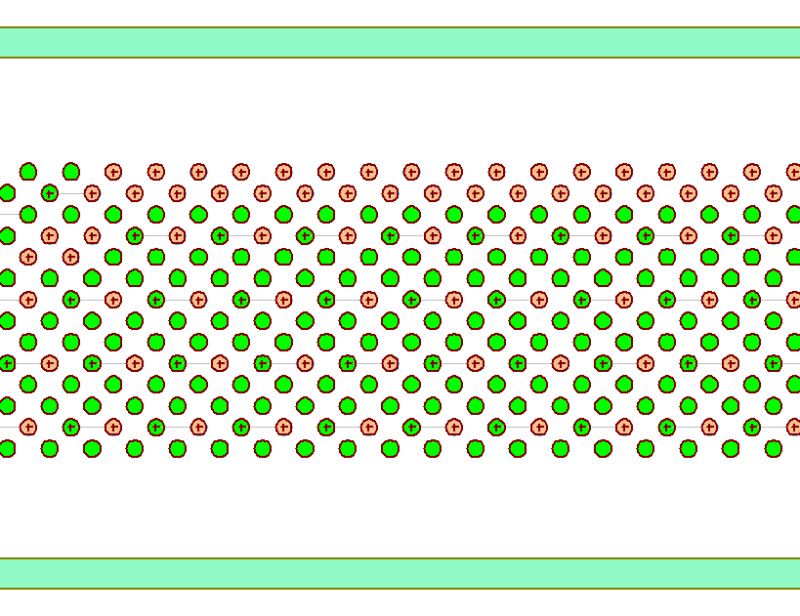

JFY PUNCH programs punching parts automatically with sequence optimization, cluster tooling, micro joins, zero manual input. Connect to JFY PLUS and program Cut, Punch, and Bend in one interface and one workflow.

3

Forms no laser can make

Louvers, extrusions, tapped holes, ribs, knockouts: all in one program, on one machine. If your parts need forming, only punching delivers it.

READY TO IMPROVE YOUR PUNCHING PROCESS?

BEND

Discover how JFY punch can help you save time and cut costs
