Bend your limits with JFY
Unlock new opportunities & bigger profits
Handle everything from small parts to extra‑large jobs. TPM+L delivers +20% open height and +45% ram stroke to form taller flanges and deeper parts, while configurable tooling heights and up to 6‑axis backgauge flexibility cover a huge variety of applications - opening the door to new opportunities and greater profits
"Perfect Bend" accuracy
Our mechanical crowning with dense point compensation guarantees flawless precision, delivering consistent angles across the entire bend line. Meanwhile, the optimized body design ensures rock‑solid accuracy you can count on
Lower costs and sustainability
Servo-drive technology slashes energy use by over 40% compared to old AC motors while running 15% faster – cutting your electric bill and supporting sustainability goals. Save on installation with a compact tank that uses only 200L of oil, significantly reducing shipping and maintenance costs
So easy, anyone can run it
Effortless programming lets you drag and drop CAD/3D files (DXF, IGS), and the machine automatically calculates the bend sequence and checks for crashes. With“What You See Is What You Get”3D simulation and digital programming, mistakes are eliminated before you ever hit Start.
Best in class Service
Dense and professional service network with local and on-site support.
Features and Performance
Details

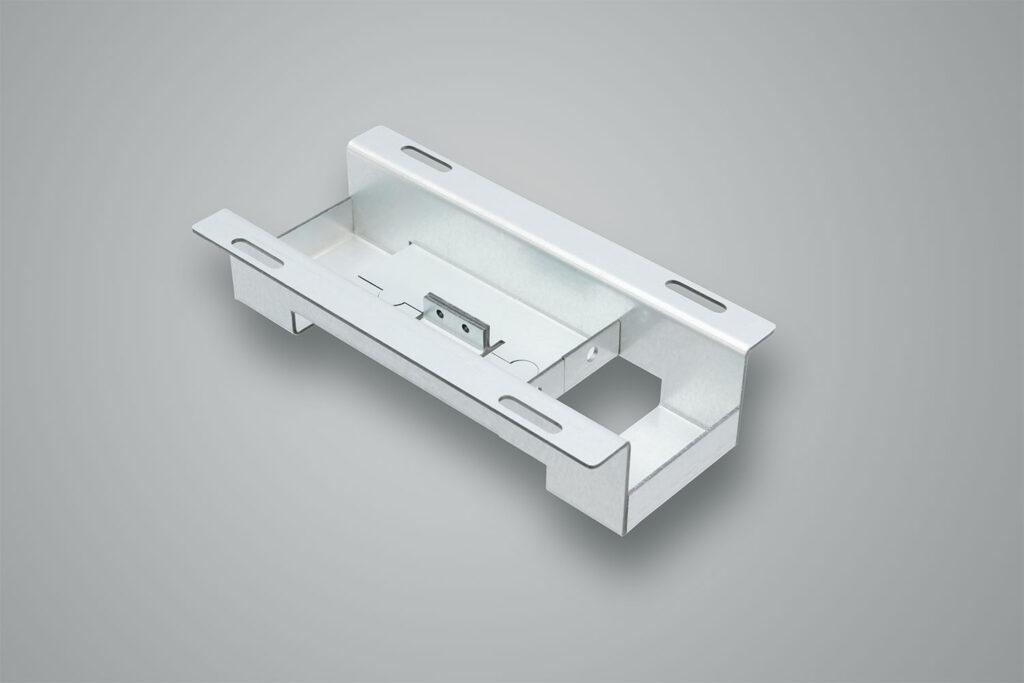

Bending accuracy
- Rigid, FEM‑optimized frame: The bed is fabricated from high‑grade steel plate
and the frame is structurally optimized by finite‑element analysis to minimize deflection under load. The result is consistent ram parallelism and repeatable bend angles across the full travel – no compromise on endurance or lifetime. - Single‑setup precision machining: Major reference surfaces are finished on SHW CNC pentahedron machining centers (Germany) with one‑time clamping, guaranteeing geometric accuracy and stable tolerances of the
assembled components. - Active throat compensation: A C‑type throat compensation unit, linked to an upper detection sensor, dynamically compensates for material and thickness
variations so bend angle remains accurate across different jobs and sheet
types. - High‑resolution mechanical crowning: Bidirectional mechanical crowning with dense‑point compensation corrects localized deflection across the table, ensuring uniform bend angles even for long parts and heavy bends

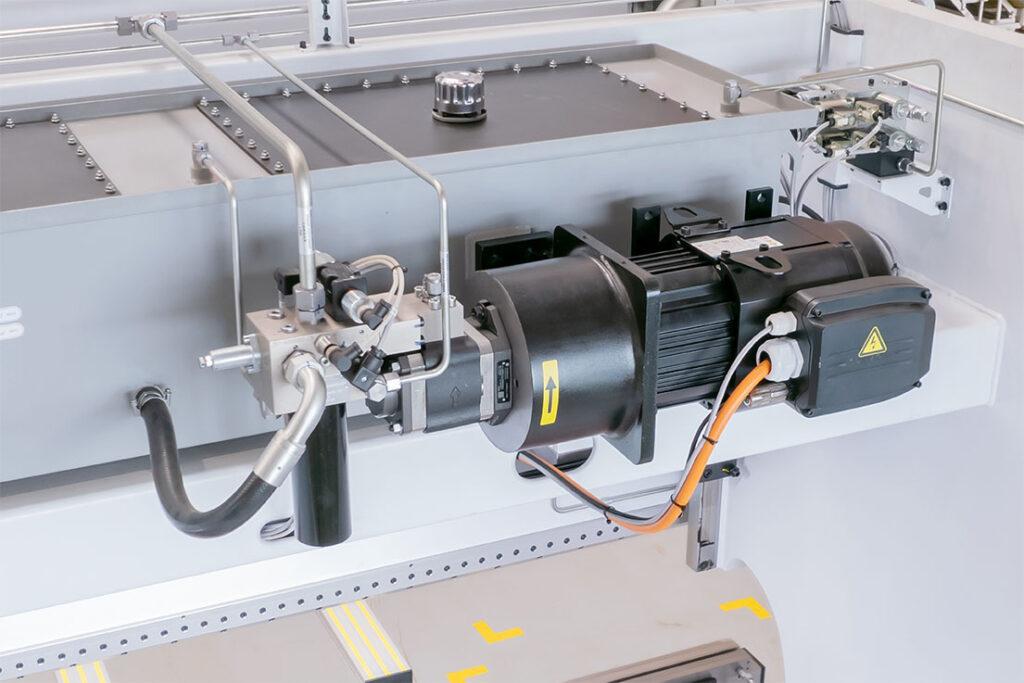

Servo drive - lower running cost, better dynamics
- Servo‑driven hydraulic pump replaces AC motor drive to cut energy
consumption by ~40% and reduce oil temperature. - Improved ram dynamics deliver 10–15% higher ram efficiency than the
previous TPM model, for faster, more consistent bends.

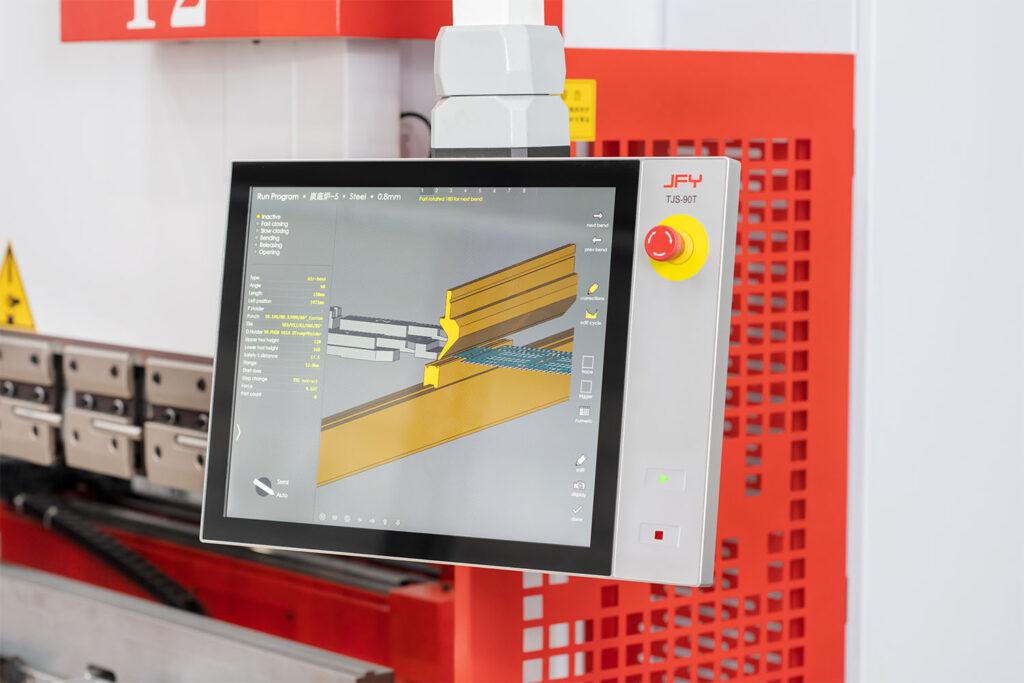

Intuitive TJS Control
- Modern platform: Windows 10 Enterprise with a 19″ multi‑touch LCD
(1280×1024) for a responsive, familiar operator experience. - Convenient and fast job creation: Digital 2D profile programming plus
automated 3D bend‑sequence generation and simulation eliminates
manual step‑programming. - CAD/3D import & tooling integration: Native DXF and IGS import. JFY
tooling library included and custom tooling can be added from CAD which speeds setup and ensures correct tool selection. - Smart assistance & learning: Automatic angle‑correction database, self‑learning tolerance table and automatic part counting reduce trial bends and improve first‑part yield.
- Production monitoring & support: Real‑time axis‑position trace analysis remote diagnosis and network file transfer simplify troubleshooting and central program management.

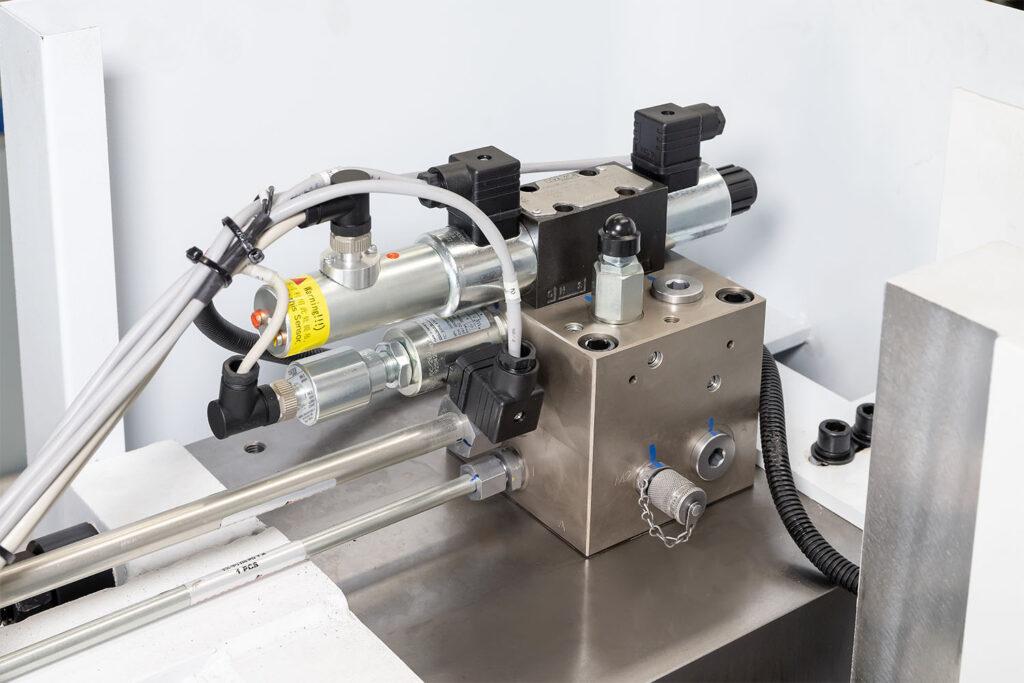

Integrated Hydraulic System
- Electro‑hydraulic dual‑cylinder control provides synchronized motion for high bending and repositioning accuracy.
- Integrated hydraulic manifold reduces piping and leakage risk, improves stability and simplifies maintenance and machine appearance.
- Five‑point hydraulic monitoring protects operators and machine components for safer continuous production.

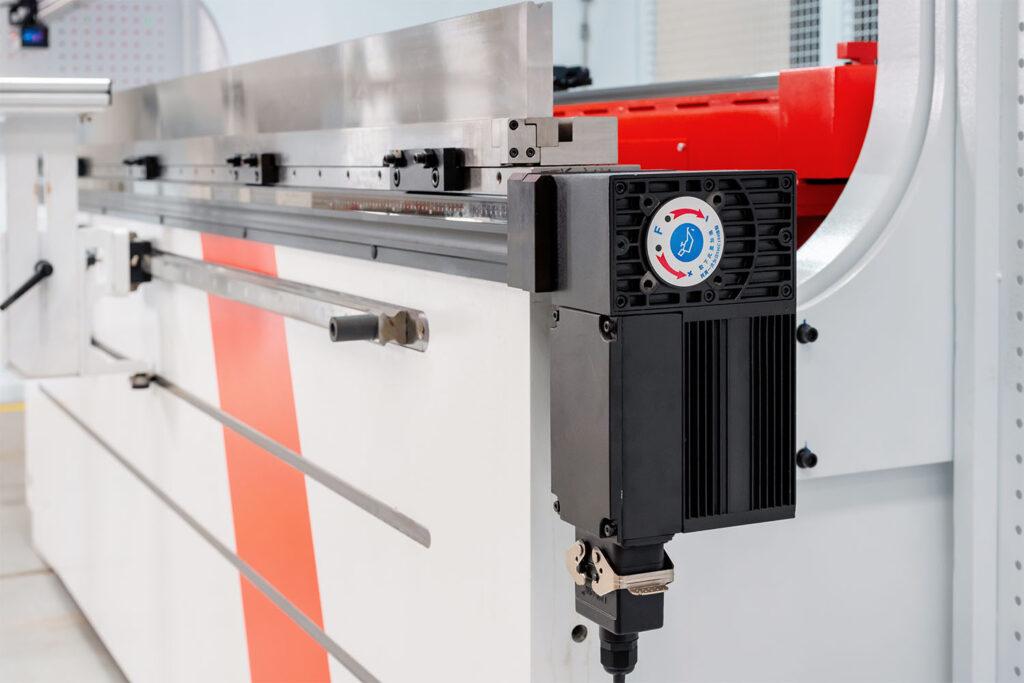

Mechanical crwoning
- Automatic mechanical crowning with dense‑point compensation corrects
localized deflection across the bed, maintaining accurate bend angles over
long parts and heavy work. - Reduces scrap and rework and keeps tolerances stable over the machine
lifetime.

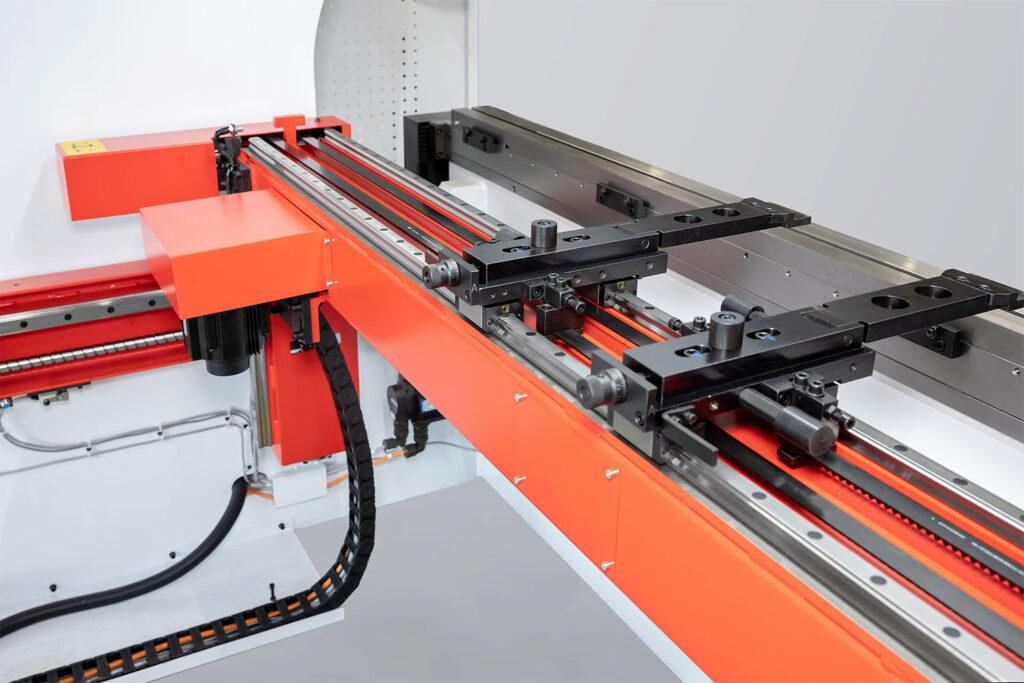

Flexible Backgauge System
- High‑speed, high‑precision backgauge motion for quick, repeatable stop
and reduced cycle time. - Modular design extendable to up to 6 axes to support complex part
geometries and multi‑bend sequences
Technical Data
| Main specification | Unit | 100T | 150T | 225T | |
|---|---|---|---|---|---|
| Model | TPM+ 100L-3100 | TPM+ 150L-3100 | TPM+ 225L-3100 |
||
| Max. bending force | KN | 1000 | 1500 | 2250 | |
| Max. bending length | mm | 3100 | 3100 | 3100 | |
| Column distance | mm | 2700 | 2700 | 2700 | |
| Throat depth | mm | 450 | 450 | 450 | |
| Ram stroke | mm | 315 | 315 | 315 | |
| Closed height | mm | 675 | 675 | 675 | |
| RAM speed | Approaching | mm/s | 220 | 180 | 160 |
| Working | 10 | 10 | 10 | ||
| Return | 220 | 180 | 170 | ||
| Main motor power | kW | 12.4 | 17.8 | 21.4 | |
| Oil tank capacity | L | 200 | 200 | 200 | |
| Machine sizes LxWxH | mm | 3980 | 4000 | 4020 | |
| mm | 1820 | 1910 | 1920 | ||
| mm | 2880 | 2880 | 2970 |
